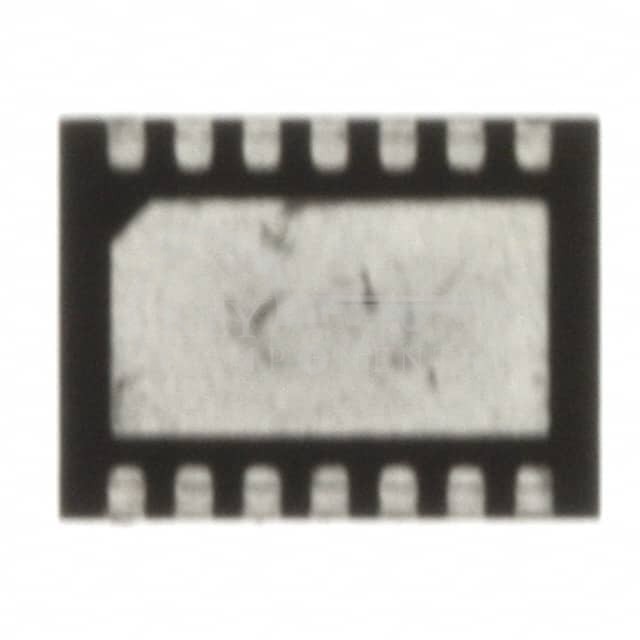

ZXLD1322DCCTC

ZXLD1322DCCTC

Manufacturer Part ZXLD1322DCCTC
Manufacturer Diodes Incorporated
Description IC LED DRV RGLTR PWM 700MA 14DFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:DC DC Regulator
Topology:Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):Yes
Number of Outputs:1
Voltage - Supply (Min):2.5V
Voltage - Supply (Max):15V
Voltage - Output:18V
Current - Output / Channel:700mA
Frequency:600kHz
Dimming:PWM
Applications:Backlight, Lighting
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:14-UFDFN Exposed Pad
Supplier Device Package:DFN4030-14
