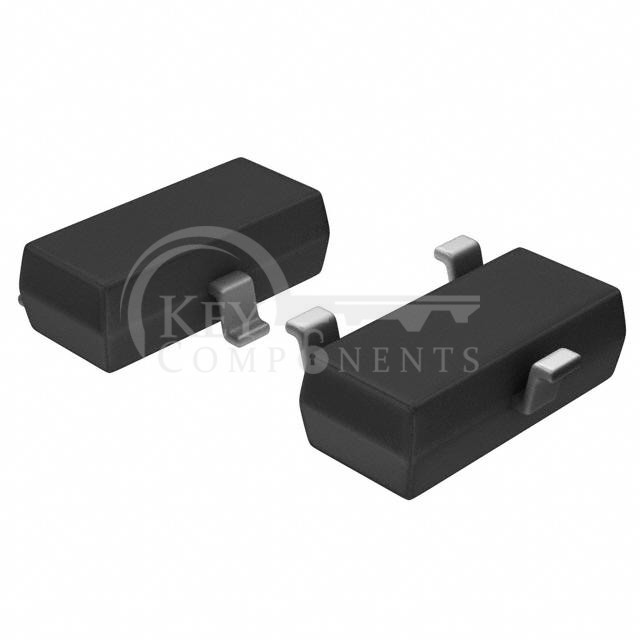

ZHCS1006TA

ZHCS1006TA

Manufacturer Part ZHCS1006TA
Manufacturer Diodes Incorporated
Description DIODE SCHOTTKY 60V 900MA SOT23-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io):900mA (DC)
Voltage - Forward (Vf) (Max) @ If:530 mV @ 750 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):12 ns
Current - Reverse Leakage @ Vr:100 µA @ 45 V
Capacitance @ Vr, F:17pF @ 25V, 1MHz
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3
Operating Temperature - Junction:125°C (Max)
