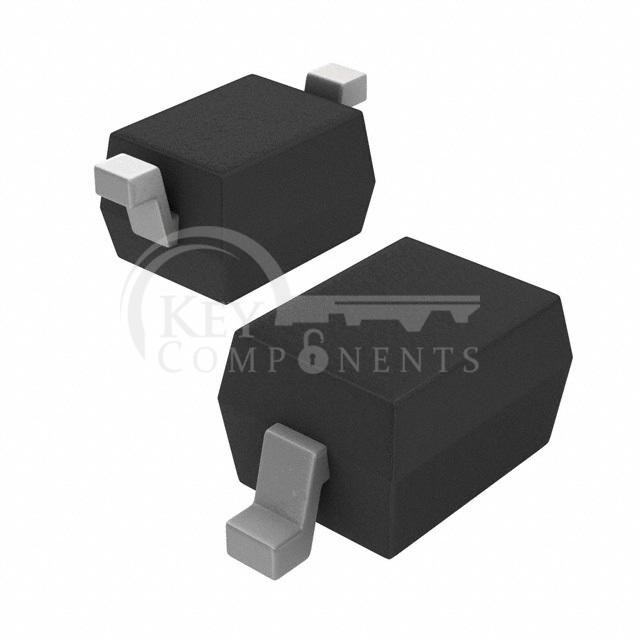

DESD5V0S1BA-7
| Manufacturer Part | DESD5V0S1BA-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TVS DIODE 5VWM 14VC SOD323 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 5.5V |
| Voltage - Clamping (Max) @ Ipp: | 14V |
| Current - Peak Pulse (10/1000µs): | 12A (8/20µs) |
| Power - Peak Pulse: | 130W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 35pF @ 1MHz |
| Operating Temperature: | -65°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-76, SOD-323 |
| Supplier Device Package: | SOD-323 |
