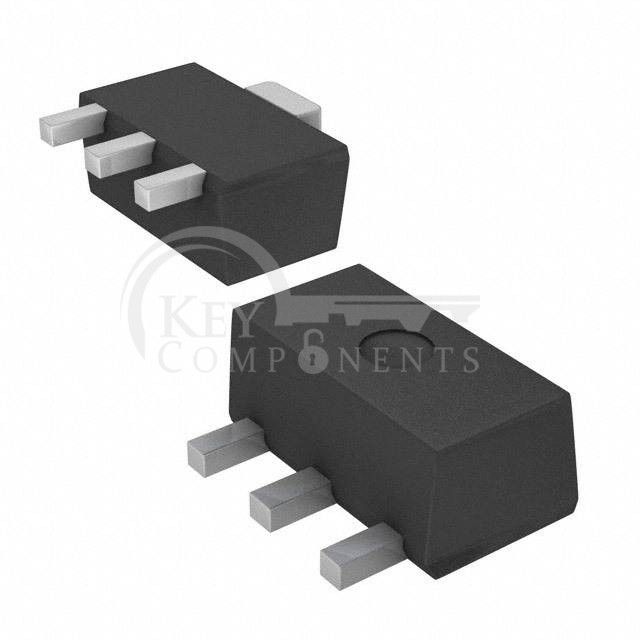

BCX5316TA

BCX5316TA

Manufacturer Part BCX5316TA
Manufacturer Diodes Incorporated
Description TRANS PNP 80V 1A SOT89-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:PNP
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 2V
Power - Max:1 W
Frequency - Transition:150MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89-3
