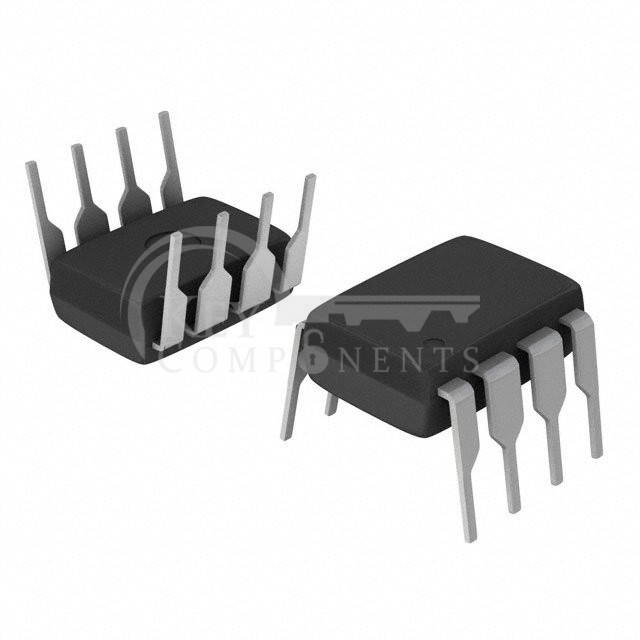

Manufacturer Part | HCPL-3020-000E |
---|---|
Manufacturer | Broadcom Limited |
Description | OPTOISO 3.75KV 1CH GATE DVR 8DIP |
Category | Isolators |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Technology: | Optical Coupling |
Number of Channels: | 1 |
Voltage - Isolation: | 3750Vrms |
Common Mode Transient Immunity (Min): | 10kV/µs |
Propagation Delay tpLH / tpHL (Max): | 700ns, 700ns |
Pulse Width Distortion (Max): | - |
Rise / Fall Time (Typ): | 50ns, 50ns |
Current - Output High, Low: | 200mA, 200mA |
Current - Peak Output: | 400mA |
Voltage - Forward (Vf) (Typ): | 1.5V |
Current - DC Forward (If) (Max): | 20 mA |
Voltage - Output Supply: | 10V ~ 30V |
Operating Temperature: | -40°C ~ 100°C |
Mounting Type: | Through Hole |
Package / Case: | 8-DIP (0.300", 7.62mm) |
Supplier Device Package: | 8-DIP |
Approval Agency: | CSA, UR |
