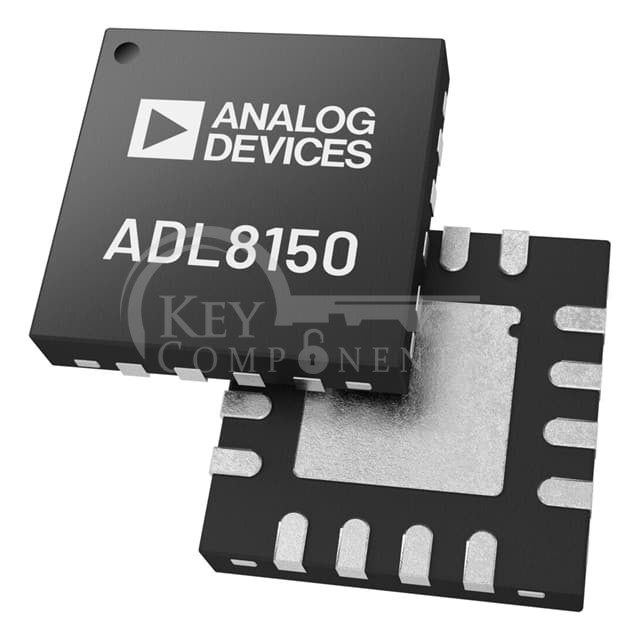

ADL8150ACPZN
| Manufacturer Part | ADL8150ACPZN |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | LOW PHASE NOISE AMPLIFIER |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Frequency: | 6GHz ~ 14GHz |
| P1dB: | 18dBm |
| Gain: | 10.5dB |
| Noise Figure: | 3.6dB |
| RF Type: | General Purpose |
| Voltage - Supply: | 3V ~ 6V |
| Current - Supply: | 74mA |
| Test Frequency: | 7GHz ~ 12GHz |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-VDFN Exposed Pad, CSP |
| Supplier Device Package: | 6-LFCSP (2x2) |
