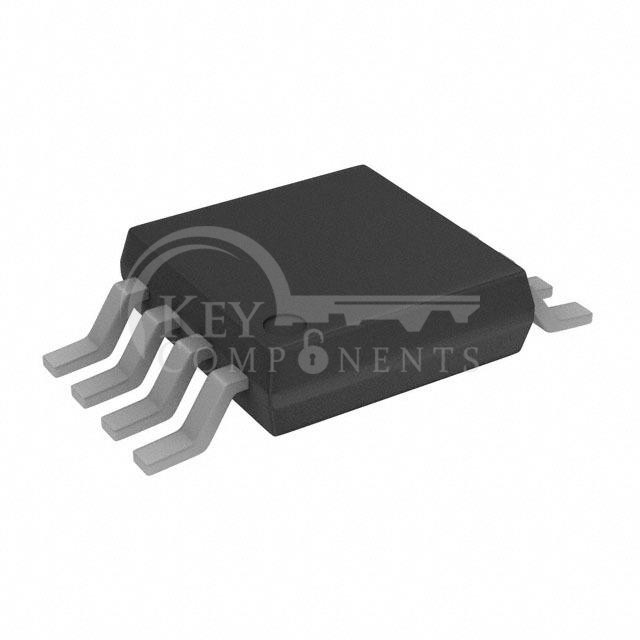

ADG723BRM-REEL7

Type	Description
Product Status:	Obsolete
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	4Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	14ns, 6ns (Typ)
-3db Bandwidth:	200MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	7pF, 7pF
Current - Leakage (IS(off)) (Max):	250pA
Crosstalk:	-97dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-MSOP

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
