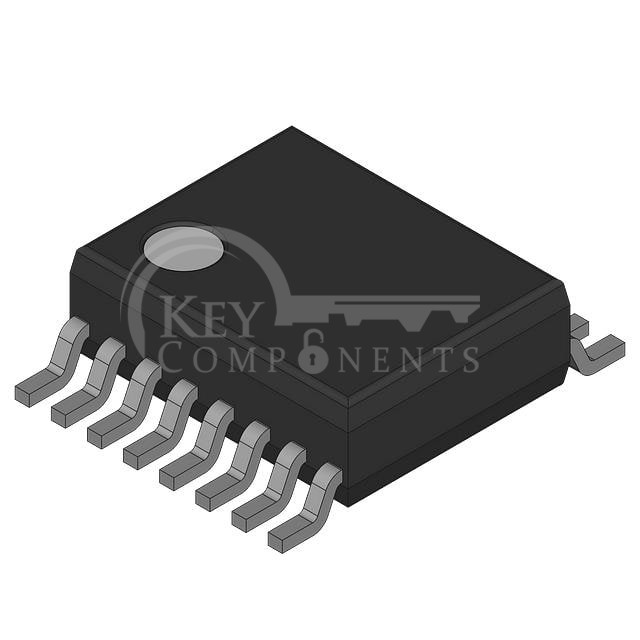

MAX2685EEE
| Manufacturer Part | MAX2685EEE |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | IC AMP/DOWNCONVERTER LNA QSOP |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| RF Type: | Cellular, ISM |
| Frequency: | 800MHz ~ 1GHz |
| Number of Mixers: | 1 |
| Gain: | 6.1dB |
| Noise Figure: | 13dB |
| Secondary Attributes: | Down Converter |
| Current - Supply: | 14.1mA |
| Voltage - Supply: | 2.7V ~ 5.5V |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-QSOP |
