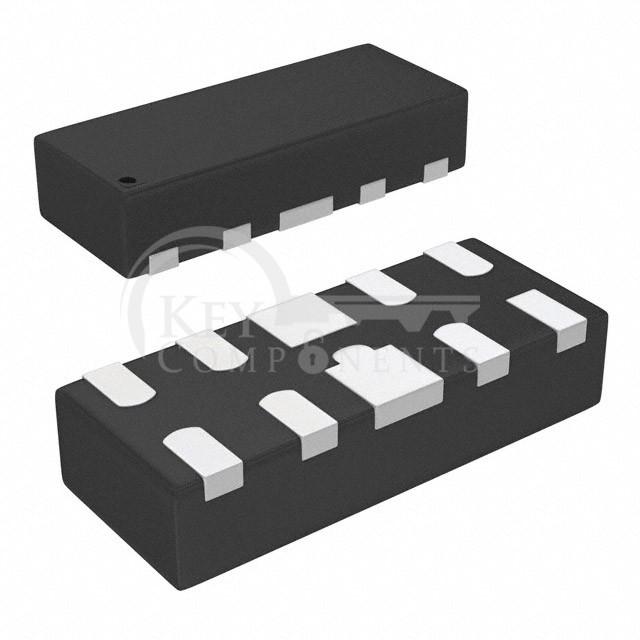

AOZ8809DI-05

Manufacturer Part	AOZ8809DI-05
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	TVS DIODE 5VWM 9VC 10DFN
Category	Circuit Protection
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Type:	Steering (Rail to Rail)
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	6V
Voltage - Clamping (Max) @ Ipp:	9V
Current - Peak Pulse (10/1000µs):	12A (100ns)
Power - Peak Pulse:	-
Power Line Protection:	Yes
Applications:	HDMI
Capacitance @ Frequency:	0.45pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN
Supplier Device Package:	10-DFN (2.5x1)
