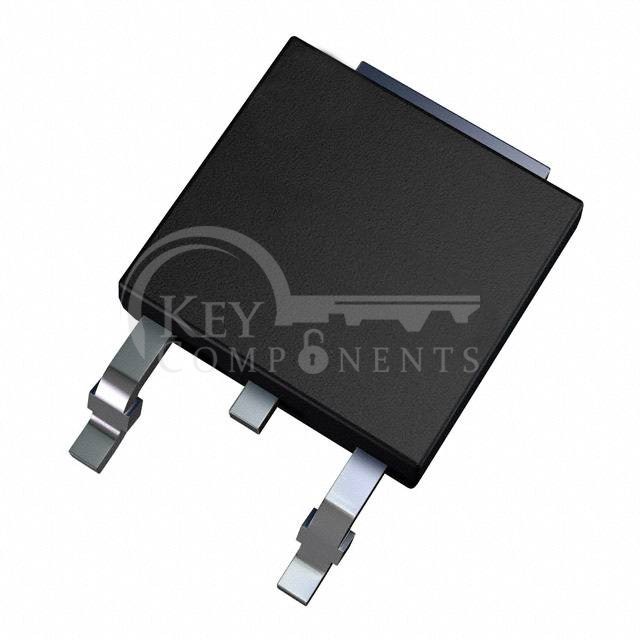

AOD474A

Manufacturer Part	AOD474A
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 75V 2.5A/10A TO252
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	2.5A (Ta), 10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	130mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	280 pF @ 37.5 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 28.5W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252 (DPAK)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
