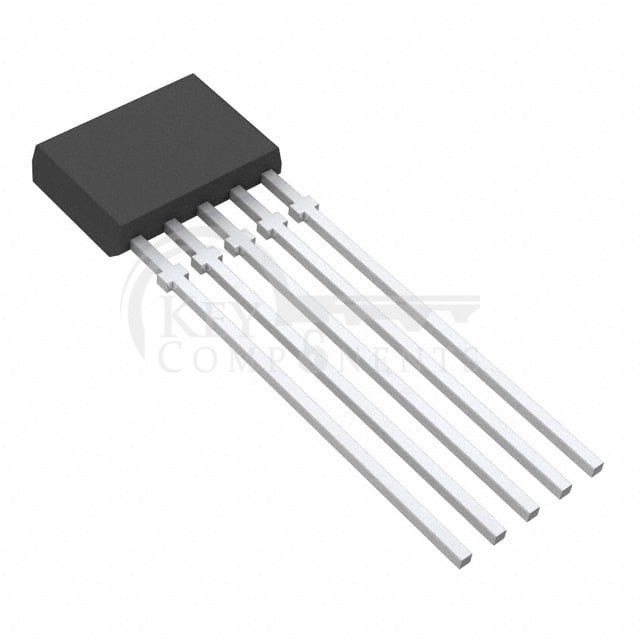

A3422EKA
| Manufacturer Part | A3422EKA |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Description | MAGNETIC SWITCH BIPOLAR 5SIP |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Bipolar Switch |
| Technology: | Hall Effect |
| Polarization: | North Pole, South Pole |
| Sensing Range: | 7.5mT Trip, -7.5mT Release |
| Test Condition: | 25°C |
| Voltage - Supply: | 4.5V ~ 18V |
| Current - Supply (Max): | 18mA |
| Current - Output (Max): | 30mA |
| Output Type: | Open Collector |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 5-SIP |
| Package / Case: | 5-SSIP |
